In this article, we will first write a GPIO
driver to control LED
using Python
, and then connect it to Shifu for interaction and management.
Create the driver
Objective
- Complete simple LED circuit connection
- Basic Raspberry Pi/SSH configuration
- Basic Python syntax and knowledge of GPIO libraries
Devices
- Raspberry Pi
Raspberry Pi 3B+
running 64-bit Raspberry Pi OS
- 1 breadboard
- 3 LED bulbs (red, yellow, green)
- 1 x 330 ohm resistor
Basic knowledge
- Simple Python syntax
- Basic Linux command line operations (create files, install apps, SSH, run programs)
Step 1 Circuit design
First let's design the circuit. We need to design a circuit that will allow the GPIO
output of the Raspberry Pi to control the on/off of a single LED bulb. In this article, we have used the most straightforward approach, i.e., using GPIO
directly to power the LED bulbs.

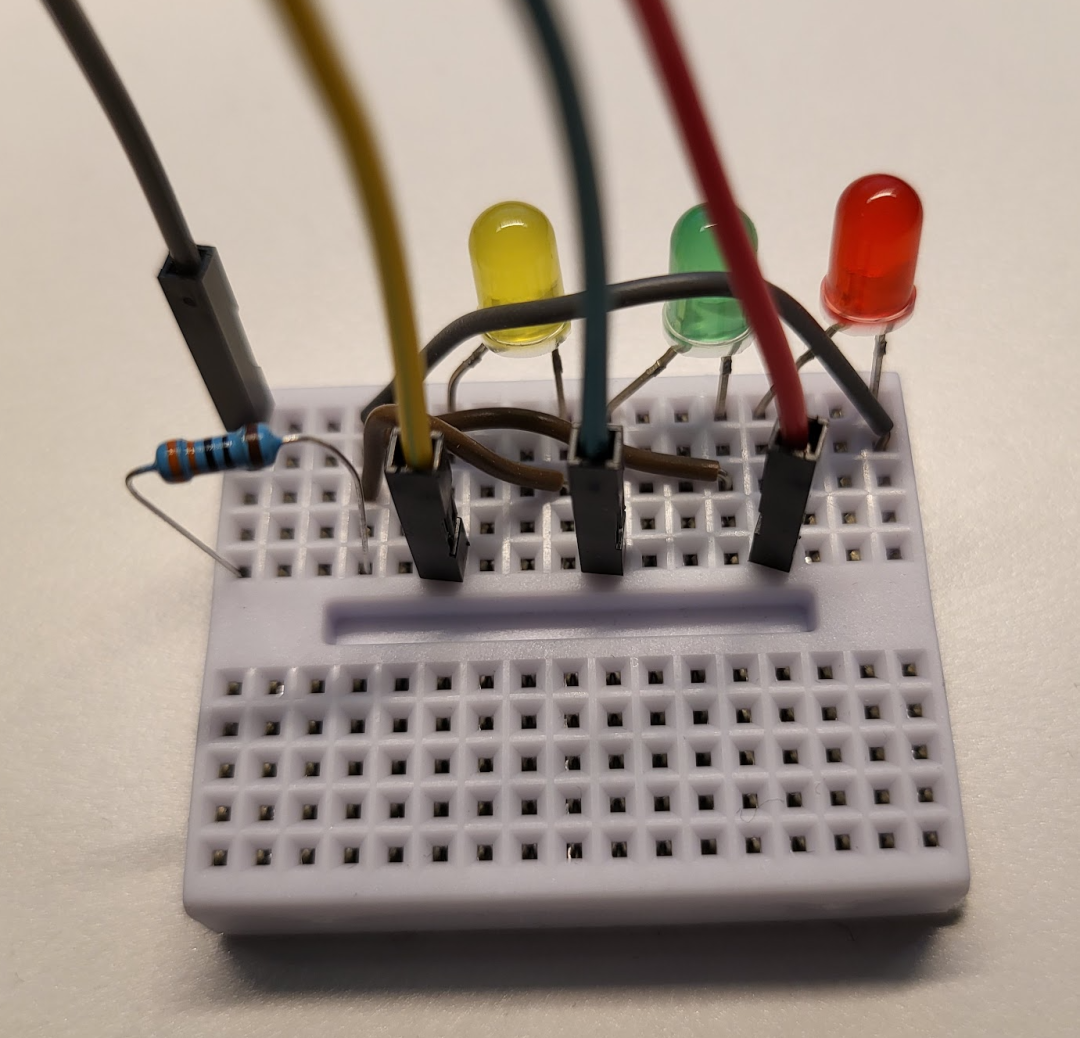

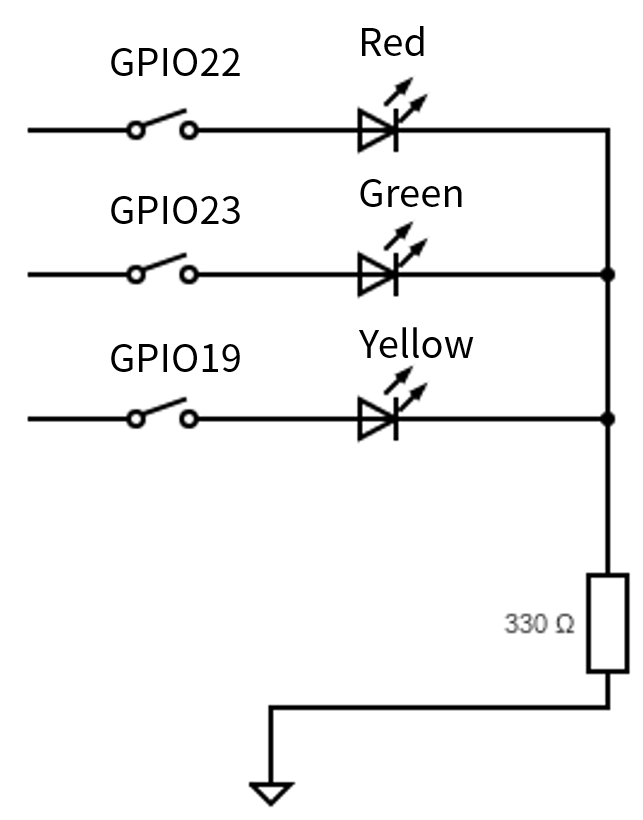

The circuit diagram is as follows.
The GPIO
pins 22, 23, and 19 control the red, green, and yellow LEDs respectively. 330 ohms resistors are connected in series at the end to prevent the LEDs from burning out due to excessive current.
Step 2 Circuit Implementation

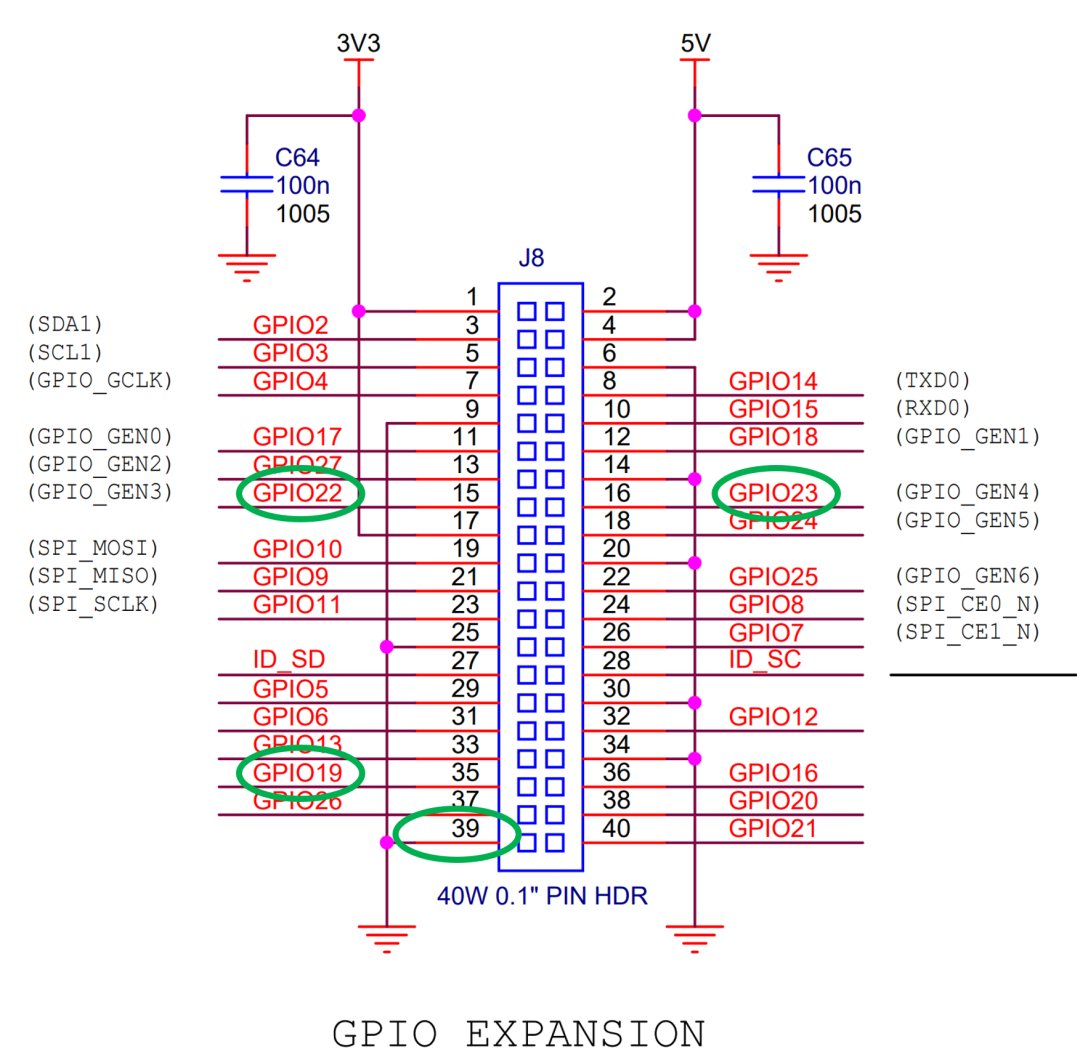

According to the Pin Layout in the official Raspberry Pi

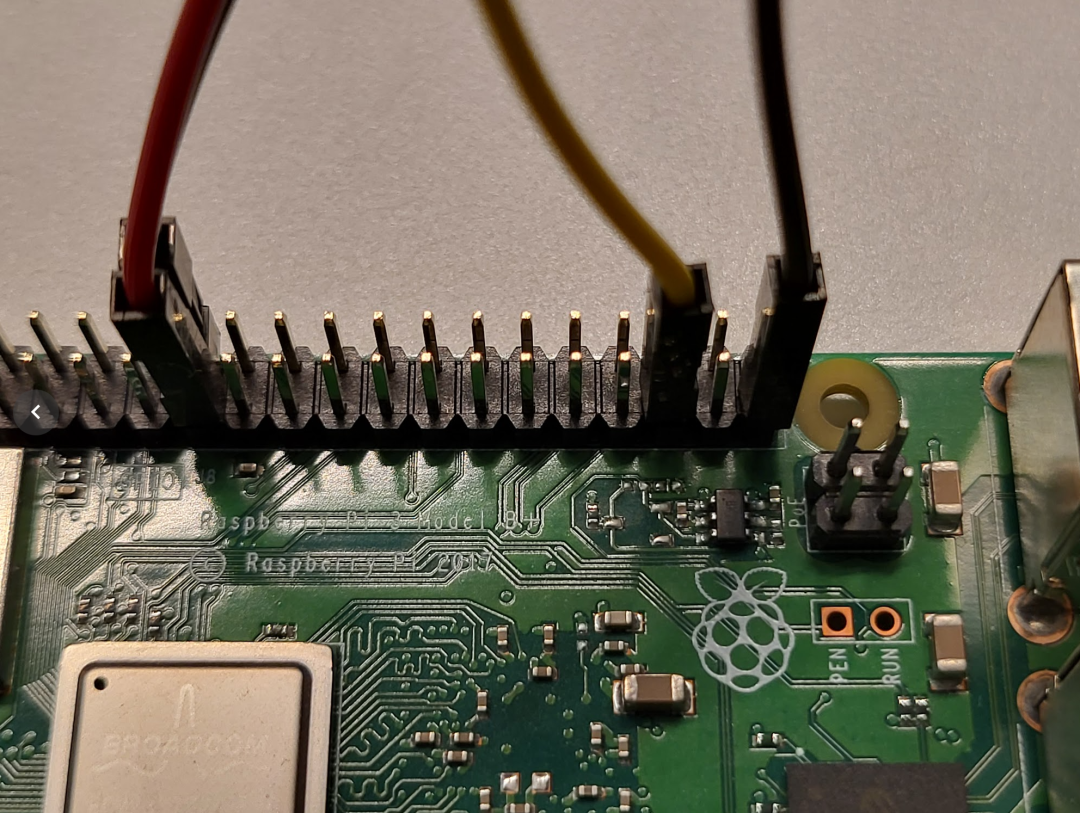

documentation, we can see the exact location of the pins, here pins 15, 16, 35 and 39 are used.
Connect these four pins to the female port of the cable, and then connect the remaining circuits on the breadboard too.
The red, green, yellow, and gray cables in the diagram correspond to GPIO22
GPIO23
GPIO19
and ground, respectively.
This concludes the circuit design and connectivity section.
Step 3 Raspberry Pi Preparation
First install an operating system in the Raspberry Pi, the one used in this article is Raspberry Pi OS (64-bit)
. download link
Insert the SD card into the reader, connect it to the USB port of your computer, and then swipe the downloaded zip file into the SD card via balenaEtcher
. balenaEtcher link
Insert the SD card into the Raspberry Pi, plug in the power and monitor cable, and we can start the configuration.
First, for development/debugging we need to enable SSH, open a terminal from the desktop and enter sudo raspi-config

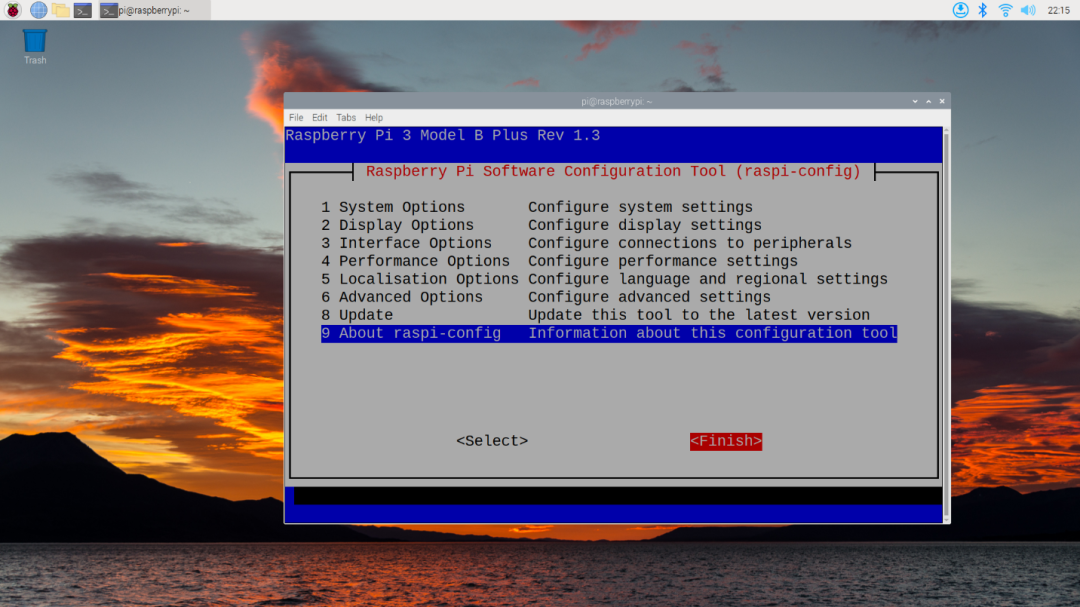

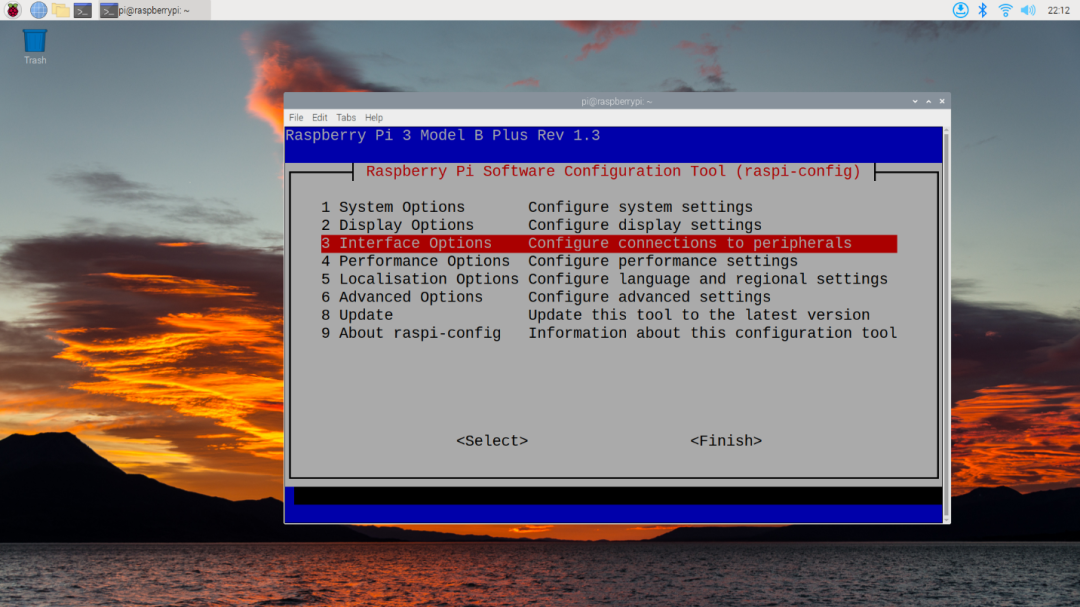

to access the configuration screen and select Interface Options
.

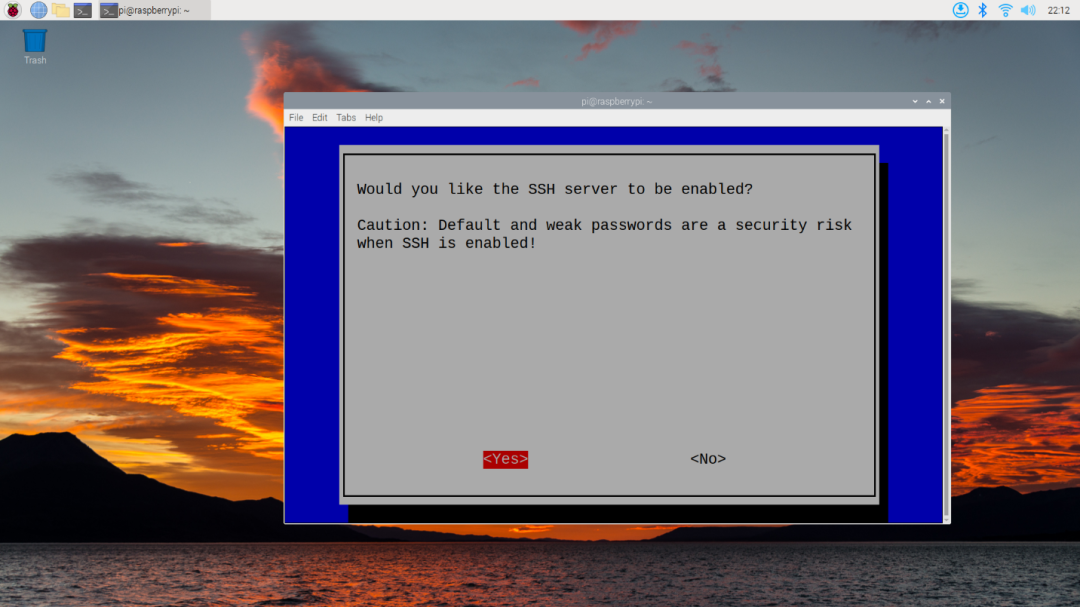

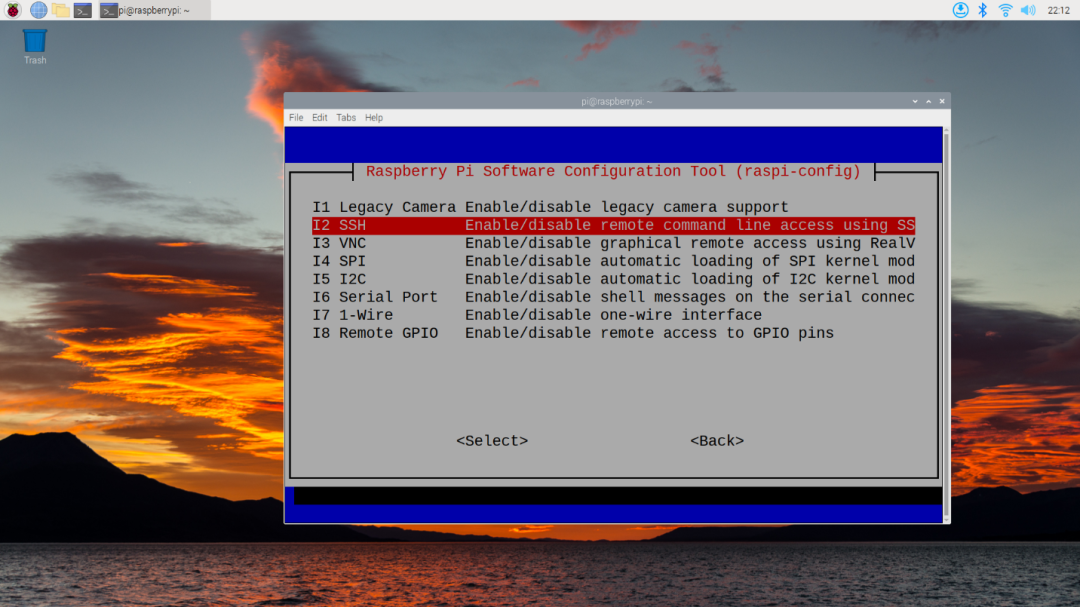

Select SSH
:
Press enter, then press left to select Yes
to enable the SSH service:
After that, press right and select Finish
, then enter to exit.
At this point, the SSH service is on, but we need to know the IP of the Raspberry Pi in order to SSH, so we can check it with the built-in ip addr
command.

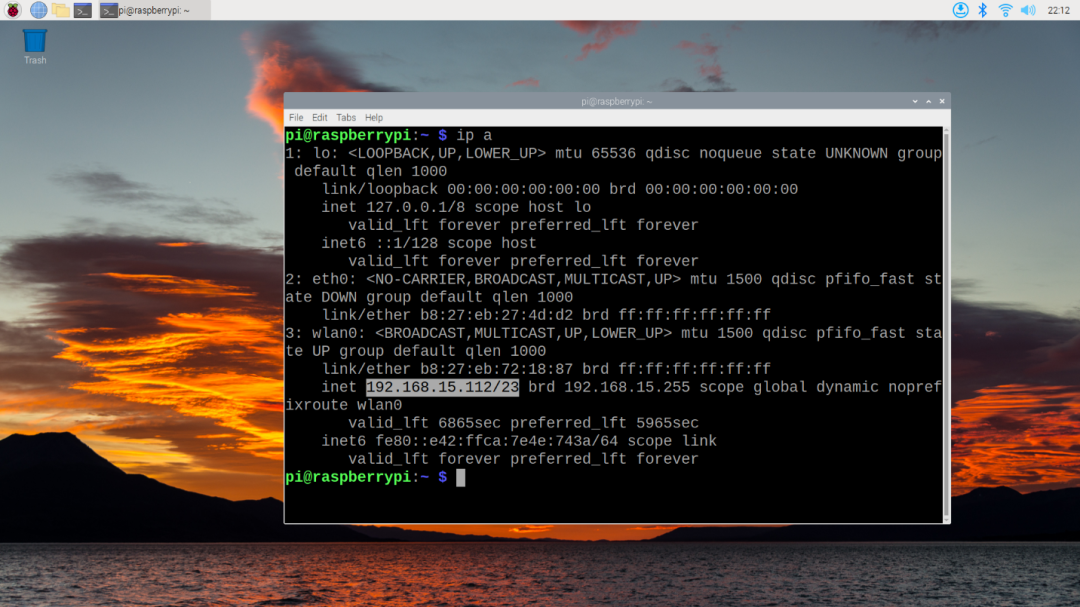

As you can see, the IP address is 192.168.15.122
.

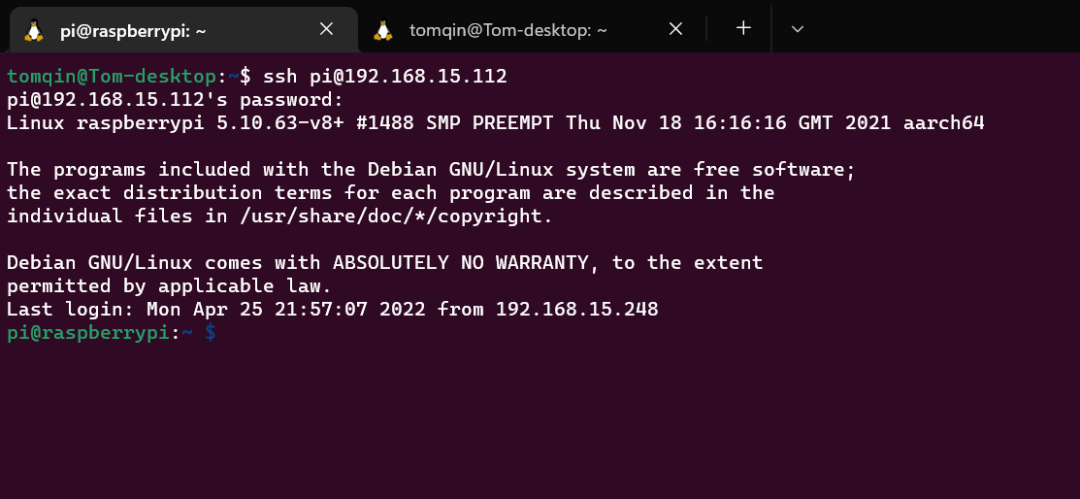

Back in the computer, you can remotely access the Raspberry Pi from the command line via ssh pi@192.168.15.122
This concludes the preparation of the Raspberry Pi and the hardware.
Earlier versions of the Raspberry Pi OS may need to manually enable GPIO
Step 4 Write a Driver
Everything is in place, now let's write the first driver!
First make sure that Python
is installed on your system, if not you can run the following command.
$ sudo apt-get update && sudo apt install python3 -y
After installation, you can check the status of the installation with python -V
, if it shows the version, then the installation is successful:
Next let's start with an LED bulb control, we want to control the red LED on/off using the following code.
The modules used in the driver are:
RPi.GPIO
to control the GPIO of the Raspberry Pi
argparse
is used to parse command line input
First set the GPIO mode to GPIO.BCM
mode, in this mode the pin numbers are the GPIO numbers, not the pin order on the Raspberry Pi board.
GPIO.setmode(GPIO.BCM)
Then turn the warning off, the Raspberry Pi will only be controlled only by this driver in this article.
GPIO.setwarnings(False)
Next process the program input, this driver will accept two inputs.
-p
, --port
, representing the GPIO pin that the program is manipulating
-o
, --operate
, represents the program's operation of the GPIO pin, on
represents 1
, i.e. 3.3V
in the circuit, off
represents 0
, i.e. 0V
in the circuit

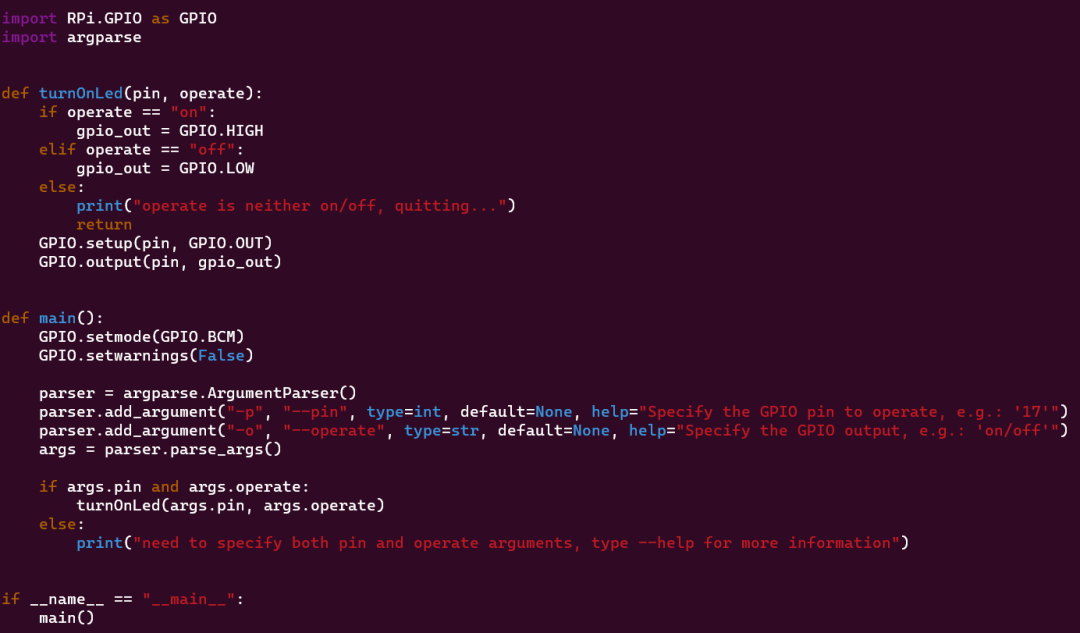

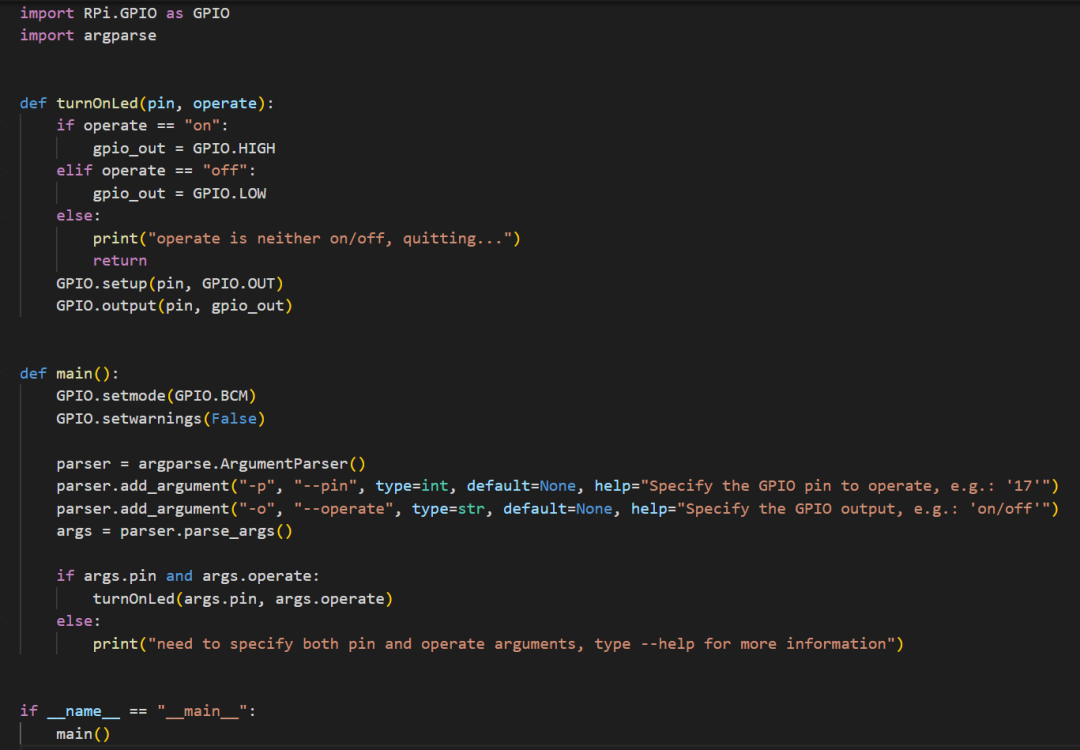

The code is as follows
parser = argparse.ArgumentParser()
parser.add_argument("-p", "--pin", type=int, default=None, help="Specify the GPIO pin to operate, e.g.: '17'")
parser.add_argument("-o", "--operate", type=str, default=None, help="Specify the GPIO output, e.g.: 'on/off'")
args = parser.parse_args()
Next we need to handle errors, passing the arguments into the function turnOnLed
to operate when the pin count and operation are not empty, otherwise printing a warning
if args.pin and args.operate:
turnOnLed(args.pin, args.operator)
else:
print("need to specify both pin and operate arguments, type --help for more information")
The main part of the program ends, so let's look at the function turnOnLed
that controls the LED bulb.
The first thing is to determine whether the operate
variable is on
or off
, otherwise it returns. The output variable gpio_out
is set to GPIO.HIGH
when the variable is on
and to GPIO.LOW
when it is off
.
These two values represent on or off.
if operate == "on":
gpio_out = GPIO.HIGH
elif operate == "off":
gpio_out = GPIO.LOW
else:
print("operate is neither on/off, quitting...")
return
The last thing is to set the mode of the pin to output: GPIO.setup(pin, GPIO.OUT)
and switch the pin's output to on/off: GPIO.output(pin, gpio_out)
Outcome

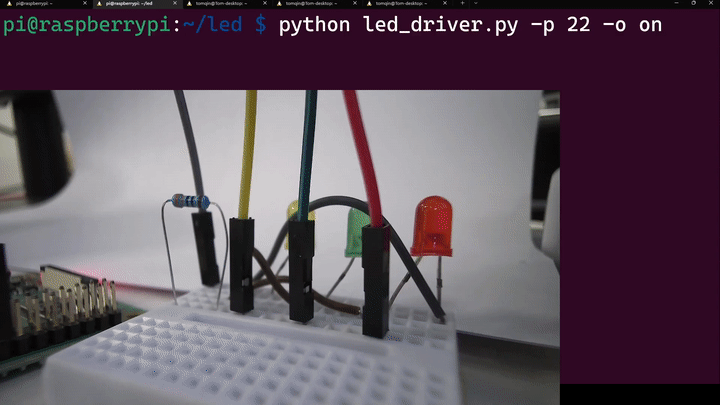

The program can be executed using python led_driver.py -p {pin #} -o {operate}
If we want to make the red bulb light up, we run python led_driver.py -p 22 -o on
And that's it, a simple control LED bulb driver for Raspberry Pi!
This driver essentially manipulates Raspberry Pi GPIO pin, so we can also use this driver to manipulate any circuit that can be controlled by 3.3V, and the pins are not limited to 22, 23 and 19 in this article. You can use your imagination to create a variety of test circuits.
Integrate into Shifu
Next, we use the driver we wrote to access the Shifu framework for interaction and management.

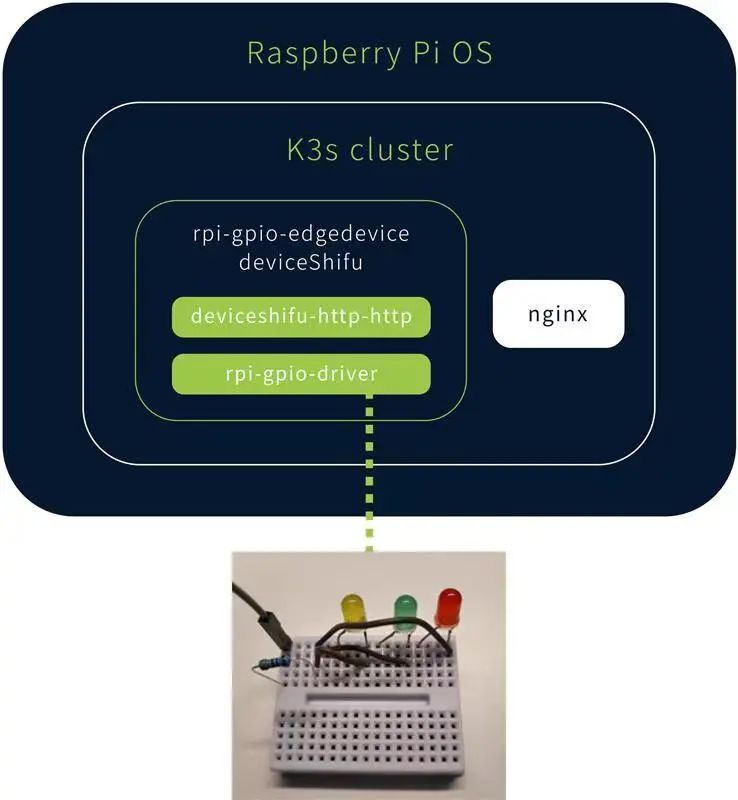

The Shifu architecture in this article is as follows.
The northbound opens up the HTTP
API interface via deviceshifu-http-http
and the southbound interacts with the actual device via rpio-gpio-driver
.
Objectives
- install k3s cluster on Raspberry Pi and install Shifu Framework
- package the Raspberry Pi LED driver to a container image
- deploy the digital twin of the Raspberry Pi LED in Shifu
- Achieve remote automation control of Raspberry Pi LEDs
Devices
- Raspberry Pi
Raspberry Pi 3B+
running 64-bit Raspberry Pi OS
Basic knowledge
- basic operation of Docker/containerd
- basic operation of K8s/K3s
Step 1 Install k3s
First we need to run a Kubernetes cluster
in the Raspberry Pi. There is no restriction on the version users can use here, but to save resources we use k3s
in this article. Installation Tutorial

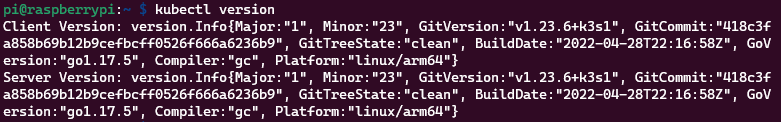

After installation, run kubectl version
to see the current Kubernetes
version.
Use kubectl get nodes
to see the status of the current cluster, showing Ready
means the cluster is available:
At this point, the k3s
installation is complete.
Step 2 Install Shifu
First clone the Shifu project repository on your computer:
$ git clone https://github.com/Edgenesis/shifu.git

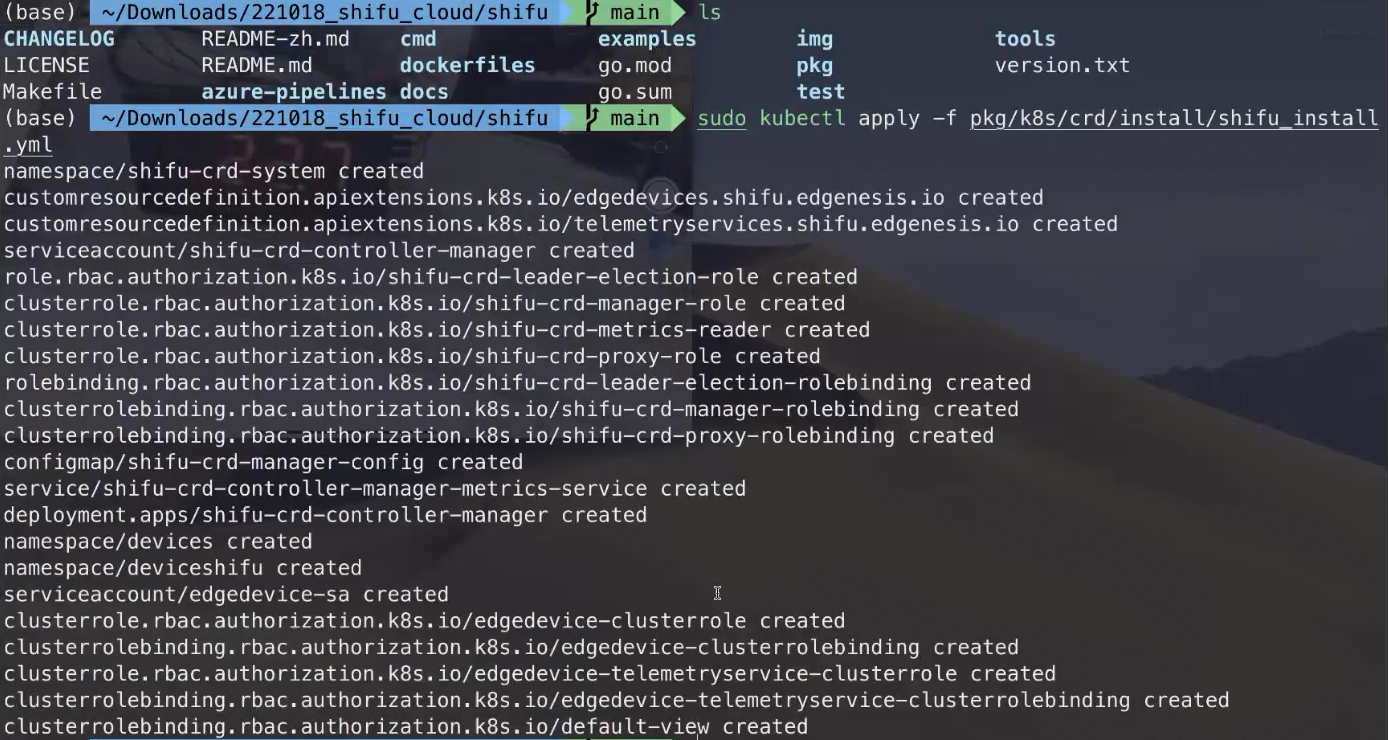

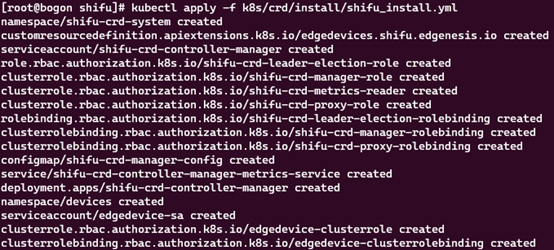

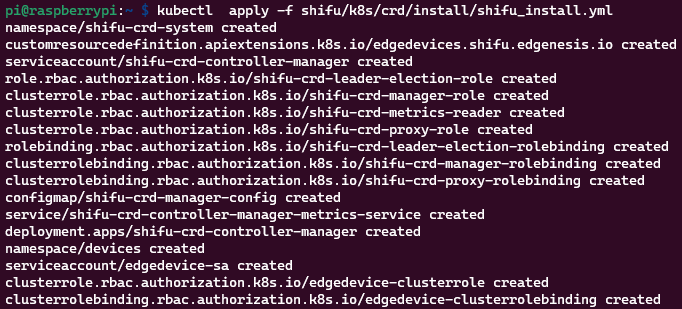

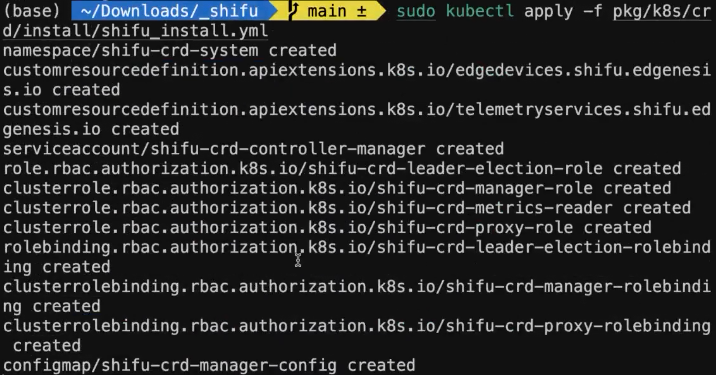

You can deploy Shifu to the k3s
cluster with one click by using kubectl apply -f shifu/pkg/k8s/crd/install/shifu_install.yml
.

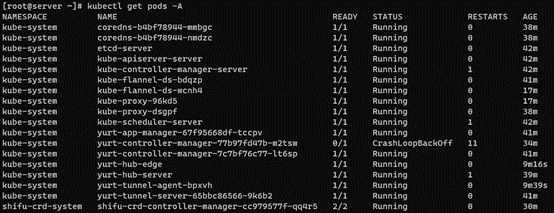

Execute kubectl get pods -A
again to see the Shifu Framework

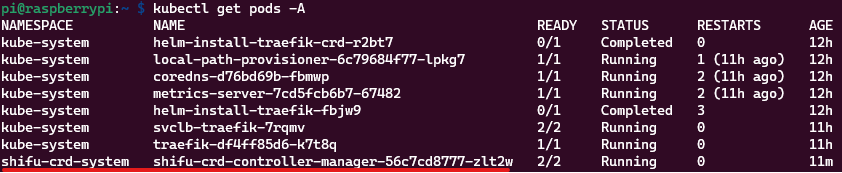

controller deployed to the cluster:
We can also manage device resources (currently there are no devices) via edgedevices
the CRD
:
At this point, Shifu is successfully installed.
Step 3 Package the driver
We need to use a small tool provided by Shifu to realize that we can manipulate the local driver remotely, for a detailed tutorial please see.
This tool helps to convert HTTP requests sent by the user/program to a local command line for execution.
A sample driver is provided inside the tutorial at https://github.com/Edgenesis/shifu/blob/main/examples/driver_utils/simple-alpine/Dockerfile.sample
The content is as follows.

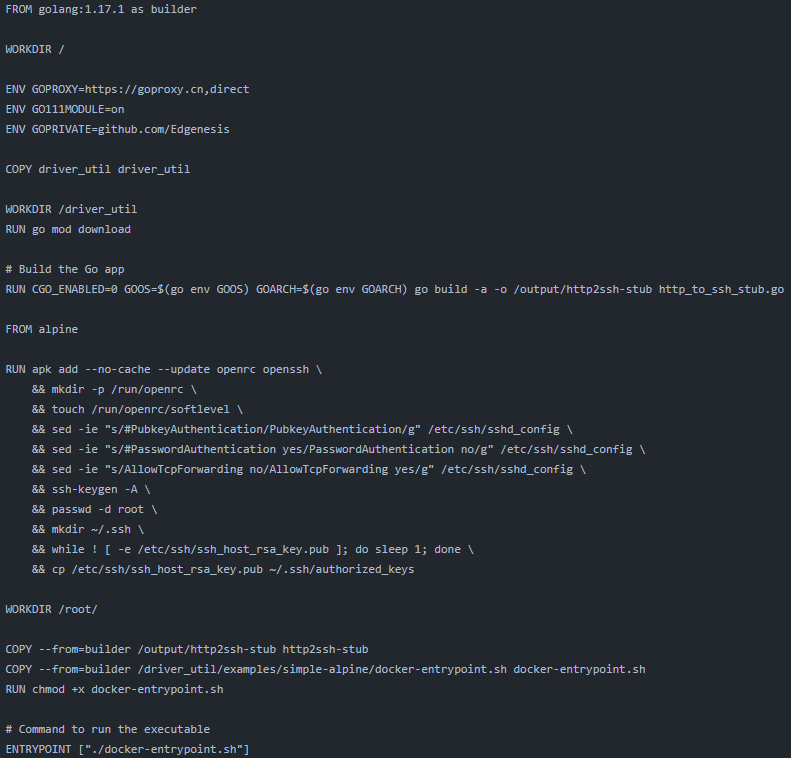

You can see that the Dockerfile
has two parts, the first is to use the golang
image to compile the http_to_ssh_stub.go
provided by Shifu to convert HTTP command to SSH command. The next step is to use an empty alpine
image to configure SSH for demonstration.
Next let's practice it.
Considering the limitations of Raspberry Pi, this compilation will be executed from the computer side, and the compiled image will be pushed to Docker Hub
for remote invocation.
First, we create a new folder, here we use dev
, and then save the created Raspberry Pi LED driver to this directory:.
The driver content remains the same.
Copy Dockerfile.sample
from the driver_util/examples/simple-alpine/
directory of the Shifu project to the dev
directory.
dev/
├── Dockerfile.sample
└── led_driver.py
Change the following fields to change the second part of the image from alpine
to python:alpine
, install the Python
library for RPi.GPIO
Finally, copy the Python driver
into the run container, and the new Dockerfile
will look like this, with the changes marked with comments.
FROM golang:1.17.1 as builder
WORKDIR /
ENV GOPROXY=https://goproxy.cn,direct
ENV GO111MODULE=on
ENV GOPRIVATE=github.com/Edgenesis
COPY driver_util driver_util
WORKDIR /driver_util
RUN go mod download
# Build the Go app
RUN CGO_ENABLED=0 GOOS=$(go env GOOS) GOARCH=$(go env GOARCH) gobuild -a -o /output/http2ssh-stub http_to_ssh_stub.go
FROM python:alpine # modified
RUN apk add --no-cache --update openrc openssh \
&& mkdir -p /run/openrc \
&& touch /run/openrc/softlevel \
&& sed -ie "s/#PubkeyAuthentication/PubkeyAuthentication/g"/etc/ssh/sshd_config \
&& sed -ie "s/#PasswordAuthenticationyes/PasswordAuthentication no/g" /etc/ssh/sshd_config \
&& sed -ie "s/AllowTcpForwardingno/AllowTcpForwarding yes/g" /etc/ssh/sshd_config \
&& echo"PubkeyAcceptedKeyTypes=+ssh-rsa" >> /etc/ssh/ sshd_config\ # modified
&& ssh-keygen -A \
&& passwd -d root \
&& mkdir ~/.ssh \
&& while ! [ -e/etc/ssh/ssh_host_rsa_key.pub ]; do sleep 1; done \
&& cp /etc/ssh/ssh_host_rsa_key.pub~/.ssh/authorized_keys
RUN apk add --no-cache -Uu --virtual .build-dependencies libffi-devopenssl-dev build-base musl \
&& pip3 install --no-cache --upgrade RPi.GPIO\
&& apk del --purge .build-dependencies \
&& apk add --no-cache --purge curlca-certificates musl \
&& rm -rf /var/cache/apk/* /tmp/* # modified
WORKDIR /root/
COPY --from=builder /output/http2ssh-stub http2ssh-stub
COPY --from=builder/driver_util/examples/simple-alpine/docker-entrypoint.sh docker-entrypoint.sh
COPY dev/led_driver.py led_driver.py # modified
RUN chmod +x docker-entrypoint.sh
# Command to run the executable
ENTRYPOINT ["./docker-entrypoint.sh"]
Next we will package the Docker image, because the CPU of the Raspberry Pi is ARM64
processor, the computer used for compiling in this article is x86-64
, so we need to use the buildx
function of Docker
to build the image, the tutorial about buildx will not be described in this article, you can move to https://docs.docker.com/buildx/working-with-buildx/.

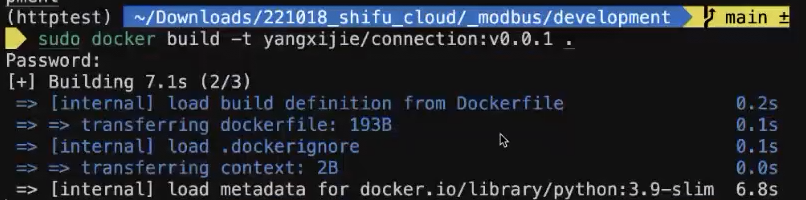

Use docker buildx build --platform=linux/arm64 -f dev/Dockerfile.sample . -t edgehub/rpi-gpio-driver:v0.0.1 --push
to build the image and push it to Docker Hub
.
At this point, the image packaging part is complete.
Step 4 Deploy device twin to Raspberry Pi
Once we have the image, we can deploy the digital twin to the cluster, so let's prepare the files we need for the deployment.
First is a Kuberenetes Deployment YAML
file to run deviceShifu and the driver Pod
.
deviceshifu-rpi-gpio-deployment.yaml
apiVersion: apps/v1
kind: Deployment
metadata:
labels:
app: edgedevice-rpi-gpio-deployment
name: edgedevice-rpi-gpio-deployment
namespace: default
spec:
replicas: 1
selector:
matchLabels:
app: edgedevice-rpi-gpio-deployment
template:
metadata:
labels:
app: edgedevice-rpi-gpio-deployment
spec:
containers:
- image: edgehub/deviceshifu-http-http:v0.0.1
name: deviceshifu-http
ports:
- containerPort: 8080
volumeMounts:
- name: edgedevice-config
mountPath: "/etc/edgedevice/config"
readOnly: true
env:
- name: EDGEDEVICE_NAME
value: "edgedevice-rpi-gpio"
- name: EDGEDEVICE_NAMESPACE
value: "devices"
- image: edgehub/rpi-gpio-driver:v0.0.1
name: driver
volumeMounts:
- mountPath: /dev/gpiomem
name: gpiomem
securityContext:
privileged: true
ports:
- containerPort: 11112
env:
- name: EDGEDEVICE_DRIVER_SSH_KEY_PATH
value: "/etc/ssh/ssh_host_rsa_key"
- name: EDGEDEVICE_DRIVER_HTTP_PORT
value: "11112"
- name: EDGEDEVICE_DRIVER_EXEC_TIMEOUT_SECOND
value: "5"
- name: EDGEDEVICE_DRIVER_SSH_USER
value: "root"
volumes:
- name: edgedevice-config
configMap:
name: rpi-gpio-configmap-0.0.1
- name: gpiomem
hostPath:
path: /dev/gpiomem
serviceAccountName: edgedevice-sa
Please note that in the Deployment file we need to add privileged: true
to the container's securityContext
, so that we can use the Raspberry Pi's GPIO in the container, then mount the Raspberry Pi's /dev/gpiomem
to the container as volume.
Write a Kubernetes Service YAML
file to proxy requests from the deviceShifu to the real Pod
from the domain.
deviceshifu-rpi-gpio-service.yaml
apiVersion: v1
kind: Service
metadata:
labels:
app: edgedevice-rpi-gpio-deployment
name: edgedevice-rpi-gpio
namespace: default
spec:
ports:
- port: 80
protocol: TCP
targetPort: 8080
selector:
app: edgedevice-rpi-gpio-deployment
type: LoadBalancer
A Kubernetes ConfigMap YAML
file to configure deviceShifu.
deviceshifu-rpi-gpio-configmap.yaml
apiVersion: v1
kind: ConfigMap
metadata:
name: rpi-gpio-configmap-0.0.1
namespace: default
data:
driverProperties: |
driverSku: RaspberryPiB+
driverImage: edgenesis/rpi-gpio-python:v0.0.1
driverExecution: "python led_driver.py"
instructions: |
pin:
operate:
help:
telemetries: |
device_health:
properties:
instruction: help
initialDelayMs: 1000
intervalMs: 1000
In ConfigMap
we need to configure the execution path of the driver, because we put the Python file directly under the default path when generating the image, just fill in python led_driver.py
here. If the driver is a binary file, you can directly fill in the binary directory here.
Write a Shifu EdgeDevice YAML
file to generate the device twin.
edgedevice-rpi-gpio-edgedevice.yaml
apiVersion: shifu.edgenesis.io/v1alpha1
kind: EdgeDevice
metadata:
name: edgedevice-rpi-gpio
namespace: devices
spec:
sku: "RaspberryPi 3B+"
connection: Ethernet
address: 0.0.0.0:11112
protocol: HTTPCommandline
Put these four files into the Raspberry Pi with the following directory contents.
led-deploy/
├──deviceshifu-rpi-gpio-configmap.yaml
├──deviceshifu-rpi-gpio-deployment.yaml
├──deviceshifu-rpi-gpio-service.yaml
└──edgedevice-rpi-gpio-edgedevice.yaml

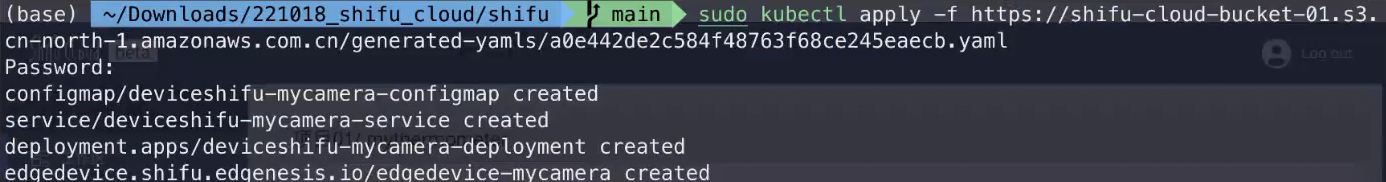

Use kubectl apply -f <dir>
to deploy deviceShifu to the k3s
cluster:

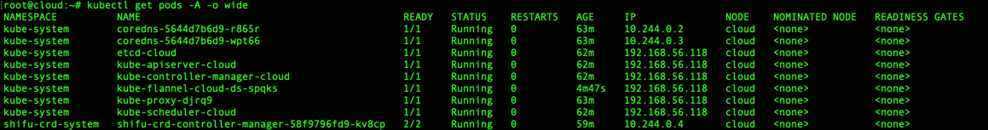

Then check the running status with kubectl get pods
.
View all device twins in the cluster with kubectl get edgedevices -n devices
.

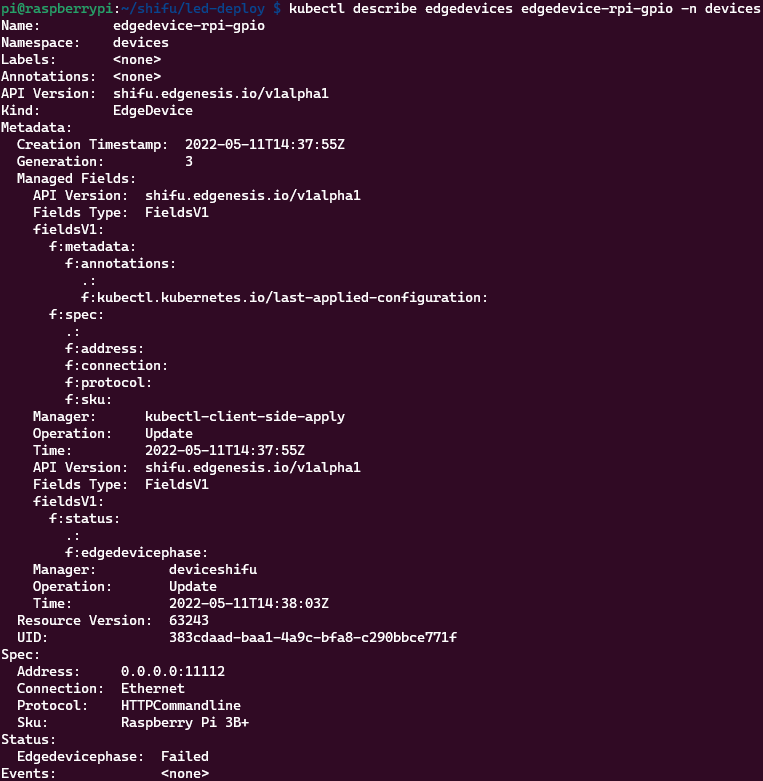

To see the details of the digital twin via describe
.
Next we can interact with the device, where we deploy an nginx
container to represent the application in a real-world scenario
The deployment command is kubectl run nginx --image=nginx
Then execute kubectl exec -it nginx -- bash
to get to the nginx
command line
Finally, using curl
to send commands to the device, the driver accepts commands in the format: python led_driver --pin <x> --operate <on/off>
Using Shifu to send commands will convert from HTTP to command line, the request address is written as: http://edgedevice-rpi-gpio/pin?flags_no_parameter=<pin>,--operate,<on/off>
Outcome

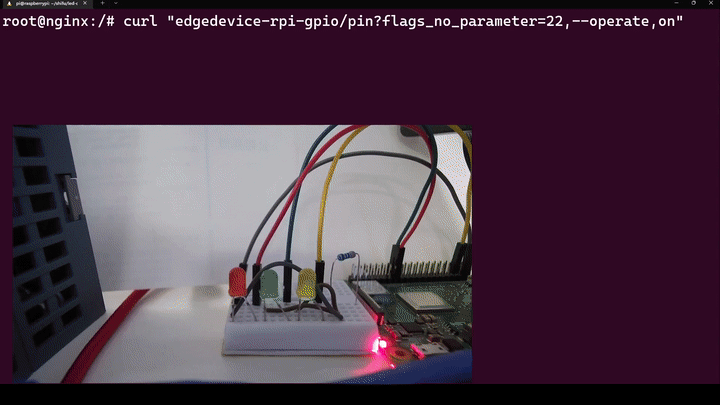

The program can control the LED bulb on/off by sending an HTTP request directly to the device's domain name.
At this point, we have successfully plugged the Raspberry Pi driver into Shifu.
